Betty Boop Home Theatre PC

Front

A HTPC is a Home Theater Personal Computer. These are computers which you would normally buy or build yourself which is solely designed to connect to your television. A HTPC is basically an all-in-one entertainment system.

A basic home theater media pc should allow you to: watch live HD television, watch movies (all formats), record television, play games, view videos/photos, and listen to music.

This PC was setup to run Windows Media Center and be controlled with a Windows Media Center compatible remote. This required an IR sensor. Best way was to use a USB IR sensor.  Due to to Windows 10 removal of Windows Media Center a Harmony Remote by Logitech was used instead which controls several devices including TVs, DVD Players, Home Theatre Speaker systems, etc…  The Harmony remote can control media players in Windows allowing PLAY, PAUSE, and STOP in most applications including streaming sites.

This PC is water cooled through an All in One cooling option which literally keeps the processor at approximately 30 degree Celsius even during hot temp environments. With all of the fans in this PC they keep the overall temps inside at a good level.

BETTY BOOP © 2016 King Features Syndicate, Inc.

AMD FX 6300 (6-core @ 3.5GHz)

Specifications

# of CPU Cores

  • 6

# of Threads

  • 6

Base Clock

  • 3.5GHz

Max Boost Clock

  • Up to 3.8GHz

Total L1 Cache

  • 288KB

Total L2 Cache

  • 6MB

Total L3 Cache

  • 8MB

Unlocked

  • No

CMOS

  • 32nm SOI

Package

  • AM3+

PCI Express® Version

  • PCIe 3.0

Default TDP / TDP

  • 95W

Max Temps

  • 70.5°C
System Memory

System Memory Specification

  • 1866MHz

System Memory Type

  • DDR3
Key Features

Supported Technologies

  • AES
AVX
FMA4
Foundation

Product Family

  • AMD FX-Series Processors

Product Line

  • AMD FX 6-Core Black Edition Processors
Boxed Processor

8GB GSkill Memory

  • Samsung 250GB EVO SSD
  • 1TB Western Digital SATA
  • 500GB Western Digital SATA

MSI 970 Gaming Motherboard

Features include:

  • Audio Boost 2
  • Sound Blaster Cinema 2
  • KILLER Gigabit ethernet
  • OC Genie 4 (for overclocking)
  • SLI & Crossfire support (Run 2 video cards simultaneously)
  • Gold-plated gaming port

Corsair CX600M power supply

  • Wrapped in white carbon fiber vinyl

RADEON HD 6700 GPU

  • Updated to an Nvidia GT1030 since it was built

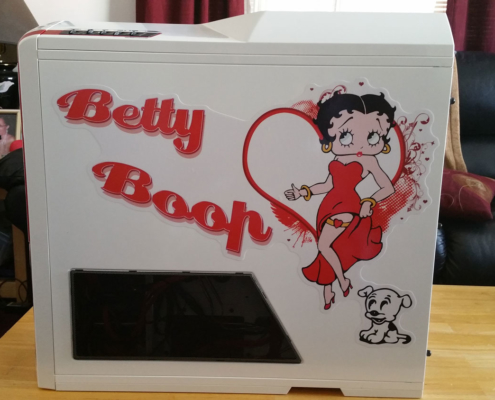

Vinyl Betty Boop decals

Meteor led light sticks (with sound activated module)

Bitfenix Fans (140mm front, 2x 120mm side)

Corsair H60 CPU Water Cooler (2 fans blowing out the back)

Several other hard drives

Strike-X fan contoller Panel

2x 200mm led NZXT fans

Corsair Red cabling

Redragon Asura keyboard

Redragon Perdition Gaming Mouse

nzxtphantom

NZXT Phantom ATX Full Tower Computer Case

NZXT presents the cutting edge Phantom Full Tower Chassis. Designed with sleek, pristine contours, the Phantom radiates personality and quality. As with all NZXT products, NZXT strives to set apart their customers from the rest with unique, original designs – they run the extra mile so you won’t have to settle with the typical rectangular box.

The Phantom delivers high-performance cooling advantages with seven fan-cooling options, dual radiator support, quad water-cooling cutouts, and five 20W per channel fan controls. An innovative 5.25″ screwless system, vast space to encompass seven hard drives, and five 5.25″ bays enable smooth customization. Establish your power and your presence.

Windows 10 with Windows Media Center installed
(Windows Media Center has been removed in Windows 10. It is possible to install it yourself. So far it works. Able to watch live TV. Was a lil quirky on setup but just had to try again. It works!)
